Technical Features
Horizontal injection system,achieve stable plasticizing and easy operation.
Single beam mold locking structure make mould loading more convenient.
Servo drive, energy saving 25-45%.
Large capacity mold installation size for higher output.
Stripping plate overturn pneumatically, safe and clean.
Optional
Electric preplasticizing, synchronous plasticizing can be realized.
Linear guide for barrel movement, low resistance, high precision.
Electric stripping, energy saving and clean.
Electric table rotation, high precision of rotation positioning.
Product Application
Advantage
Special designed single crossbar dual-cylinder balance clamping system,for fast opening and closing mold while ensuring uniform distribution.
Unique rotating mechanism design, and equipped with automatic lubrication system,ensure rotation precision be consistent.
Alternative efficient plasticizing mixing screw, optimization of the injection unt,improve the injection stability and accuracy.
Equipped with electro-hydraulic servo system, the machine is running stable, low noise, high response and energy saving of 25% to 45%.
Processing principle

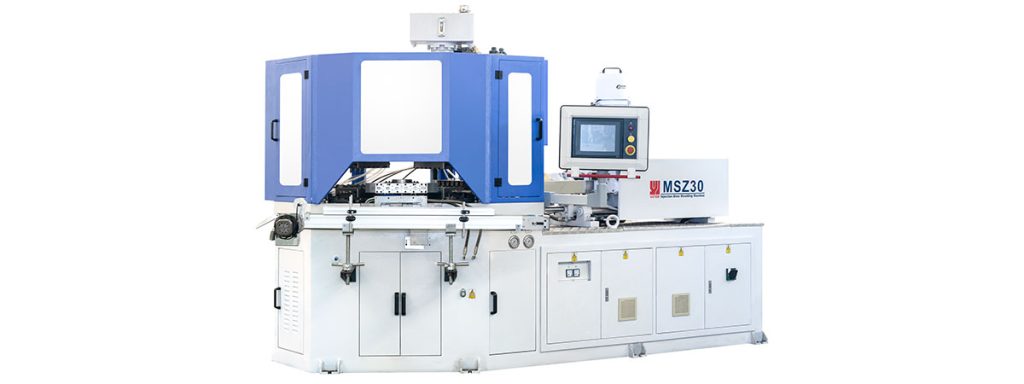

The MSZ30 IBM machine adopts a high-precision three-station rotary table design to ensure stable and efficient injection-blow molding for small-volume containers. After the preform is injected, it is smoothly transferred to the blowing station for bottle formation, and then rotated to the stripping station for final discharge. This continuous process guarantees a clean neck finish, uniform wall thickness, and accurate bottle dimensions.
Thanks to its precise mold design and optimized transfer mechanism, the MSZ30 produces bottles that meet the strict quality standards required in pharmaceutical, chemical, cosmetic, and food packaging industries. The system is compatible with a wide range of materials—including PE, PP, PS, SAN, EVA, COC, PEL, TPU, PETG, PLA—and can manufacture containers from 1ml up to 1000ml.
The MSZ30 is a reliable and efficient solution for high-performance, small-container packaging production.
Parameter Table
| Preform system | Unit | MSZ30 | |
|---|---|---|---|
| Screw diameter | mm | 40（标配） | 45 |
| Screw L/D | L/D | 23:1 | 23:1 |
| Shot volume | cm³ | 200 | 254 |
| Injection weight (HDPE) | g | 190 | 241 |
| Max. screw speed | rpm | 10–225 | |
| Heating capacity | kW | 9.6 | |
| No. of heating zones | Qty | 3+N | |
| Clamping system | |||
| Clamping force (preform) | kN | 323.2 | |
| Clamping force (blowing) | kN | 46.7 | |
| Opening stroke of mold platen | mm | 120 | |
| Lifting height of rotary table | mm | 65 | |
| Max. platen size (L×W) | mm | 400×270 | |
| Min. mold thickness (H) | mm | 180 | |
| Heating capacity of mold | kW | 3 | |
| Stripping system | |||
| Stripping stroke | mm | 220 | |
| Dry cycle | sec | 3 | |
| Driving system | |||
| Motor power | kW | 12 | |
| Hydraulic pressure | MPa | 14 | |
| Product range | |||
| Suitable bottle volume | ml | 5–800 | |
| Max. bottle height | mm | ≤190 | |
| Max. bottle diameter | mm | ≤100 | |
| Other | |||
| Compressed air pressure | MPa | 1 | |
| Compressed air discharge | m³/min | ≥0.8 | |
| Cooling water flow | m³/h | 3 | |
| Total rated power (with mold heating) | kW | 25.6 | |
| Dimension (L×W×H) | m | 3.56×1.25×2.25 | |
| Net weight | ton | 4 | |
