Victor injection blow molding machinesThree stations.Zero flash.Two seconds faster.

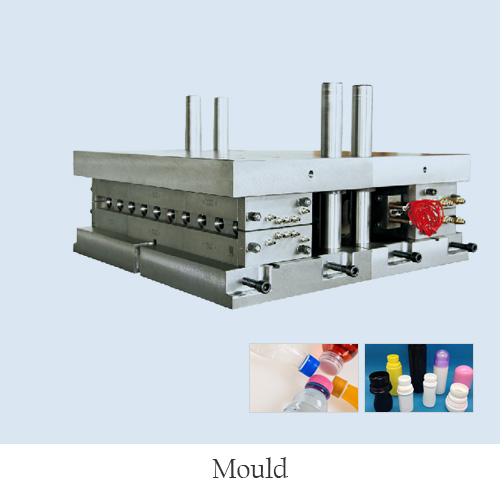

Injection blow molding machines and molds for precise pharmaceutical, cosmetic and food bottles – engineered in Zhangjiagang, running in 50+ countries.
Victor Machinery · since 1958
60+ years of manufacturing, 30 years of injection blow molding, more than 2 seconds faster
- 60+
- years of manufacturing dedication
- 30
- years focused on injection blow molding
- 2″
- faster per cycle than the previous generation
- 6,000+
- Machines and turnkey solutions delivered
- 60+
- Invention patents and proprietary IP
- 4,000+
- Standard IBM machines running worldwide
- 50+
- Countries and regions supplied
Certified quality, safety & environment
- ISO 9001
- ISO 14001
- ISO 45001
- CE
How injection blow molding works
Three stations. One rotation. A finished bottle.
01 / 03

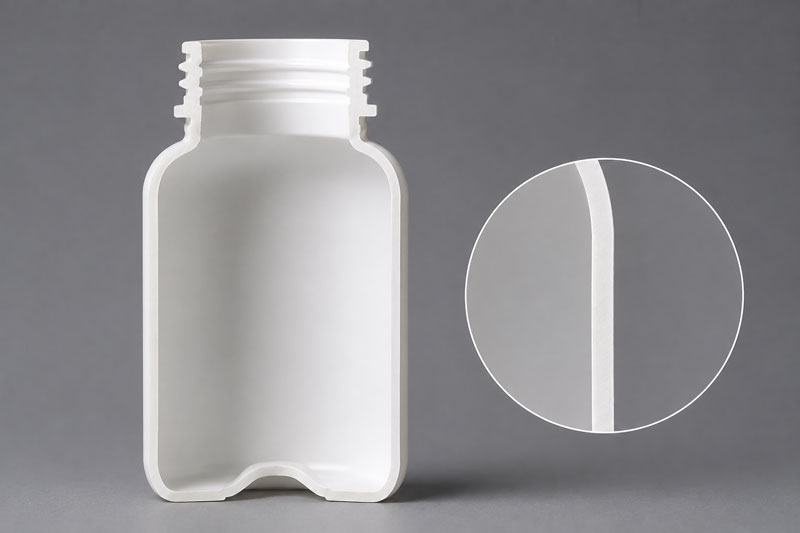

Injection: the neck is finished first
Molten resin is injected around a core rod to form the preform. The neck and thread are molded to their final dimensions right here – they never change again.
02 / 03
Blowing: air shapes the body
The table rotates 120°. Air through the core rod expands the warm preform against the blow mold. No parison, no pinch-off, no flash.
03 / 03
Stripping: a finished bottle, every cycle
Another 120° and the bottle is stripped off the rod, ready to pack. No trimming, no scrap – and all three stations work at the same time.

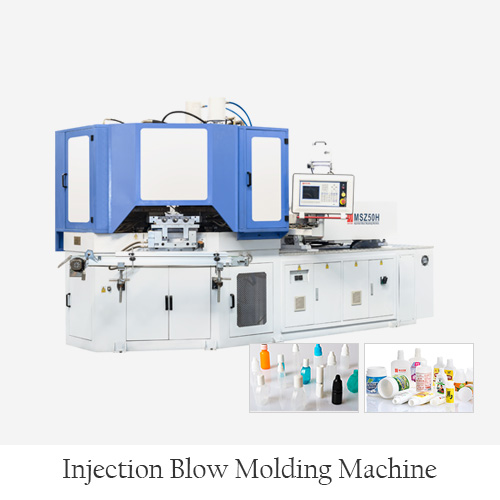

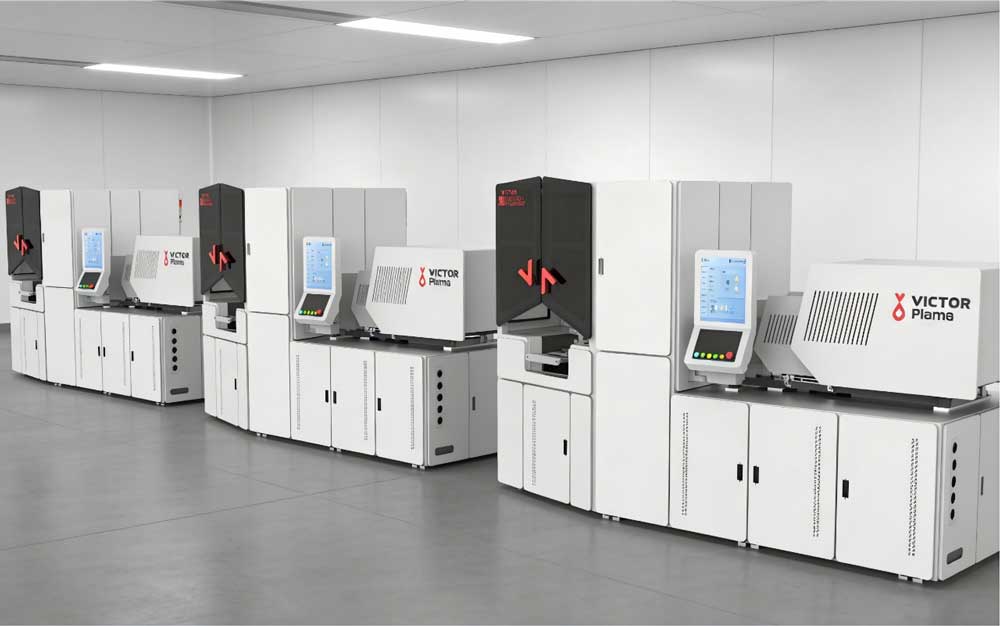

The machines
Five series. 20 machines. One for your bottle.
01 · Stability5 modelsStandard hydraulic series
MSZ30 – MSZ95
Known for stable, proven performance – more than 4,000 Victor machines run worldwide. Mature technology and wide market validation make the standard IBM machine the reliable choice for efficient, stable production.
2 sDry cycle on high-speed models
View models
02 · Energy-saving6 modelsHybrid series (HE)
MSZ30HE – MSZ135S-HE
Servo motors replace traditional hydraulic actuators for better energy use and much lower noise. In Victor’s test the MSZ50S-HE used about 14% less energy than the MSZ50S, saving 80 kWh per 1,000 kg of bottles.
–14%Energy vs. hydraulic (MSZ50S-HE)
View models
03 · Precision3 modelsAll-electric series (AE)
MSZ30AE – MSZ70AE
Energy saving, low noise, high precision and intelligent control in one clean machine – the benchmark for pharmaceutical and premium packaging that needs strict process control.
–27.9%Energy per 100,000 bottles (MSZ70AE)
View models
04 · Customization5 modelsD series for larger containers
D7 – D13-Pro
Built for larger bottles, with an extra-large mold space and a special clamping system that keeps clamping force ample. Electric stripping, rotation and charging are available to suit each industry.
2000kN on the D13-Pro
View models
05 · Eye drop bottles1 modelsQ series for eye drop bottles

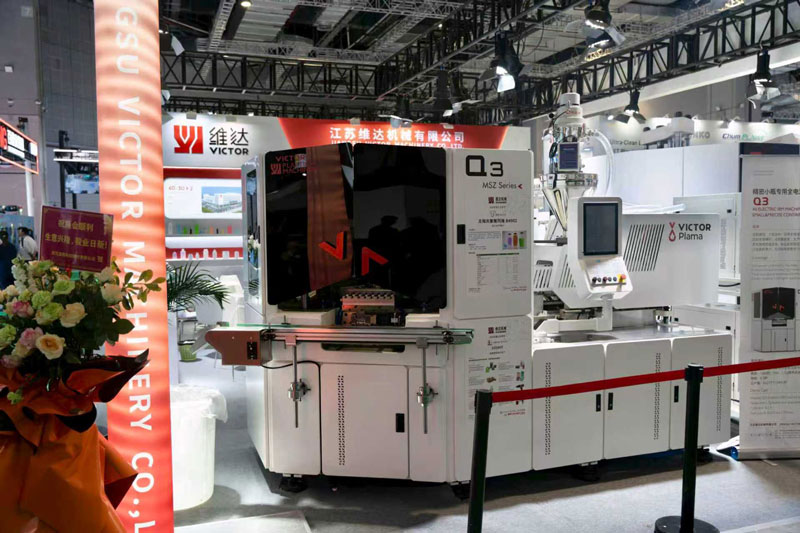

Q3
A dedicated injection blow molding machine for eye drop and other small bottles from 5 to 100 ml, with a 1.8 s dry cycle in a 3 m footprint and electric charging, stripping and rotation as standard.
1.8 sDry cycle on the Q3
View models

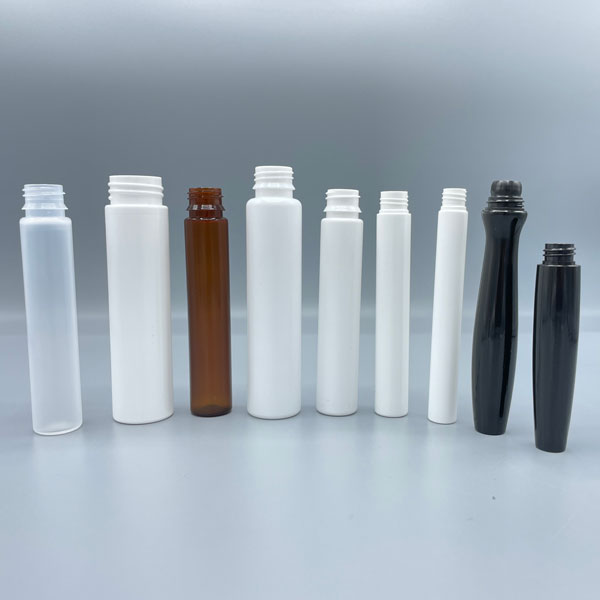

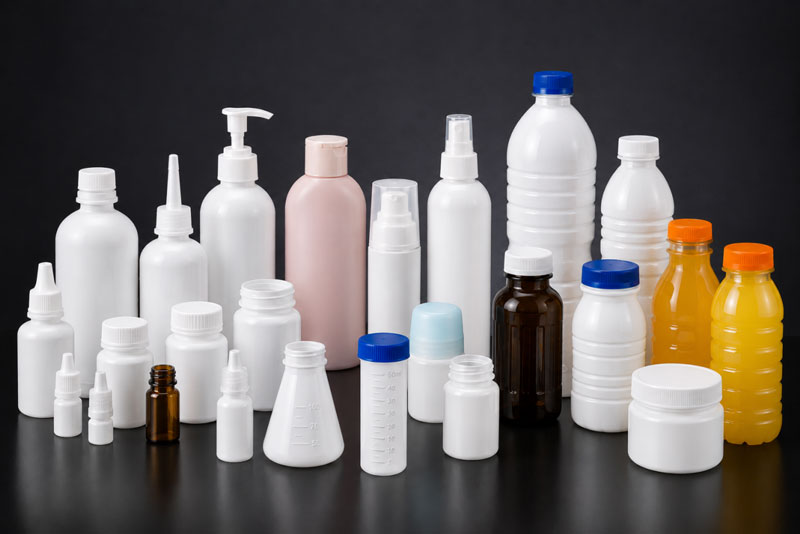

What our customers make
From a 5 ml vial to a 1 L container

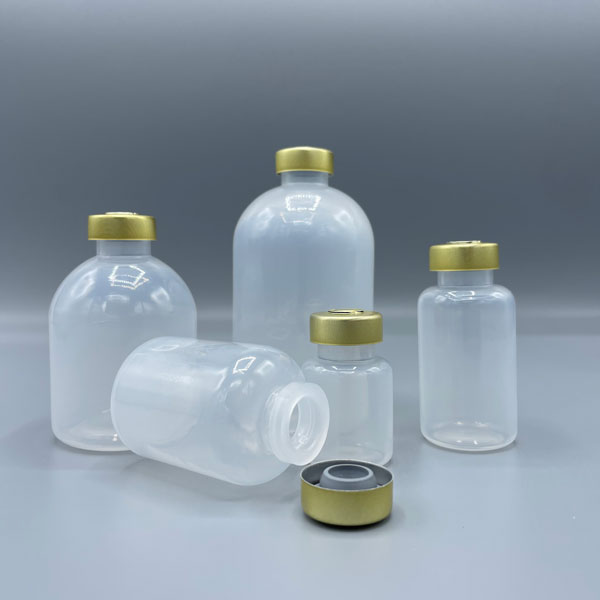

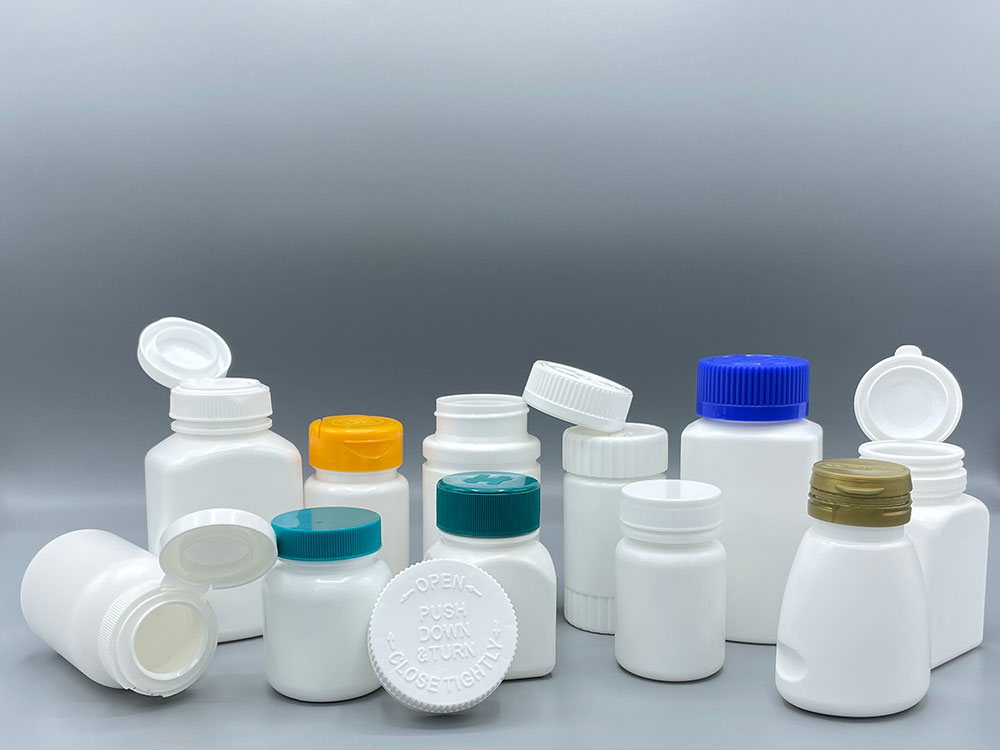

Pharmaceutical bottles

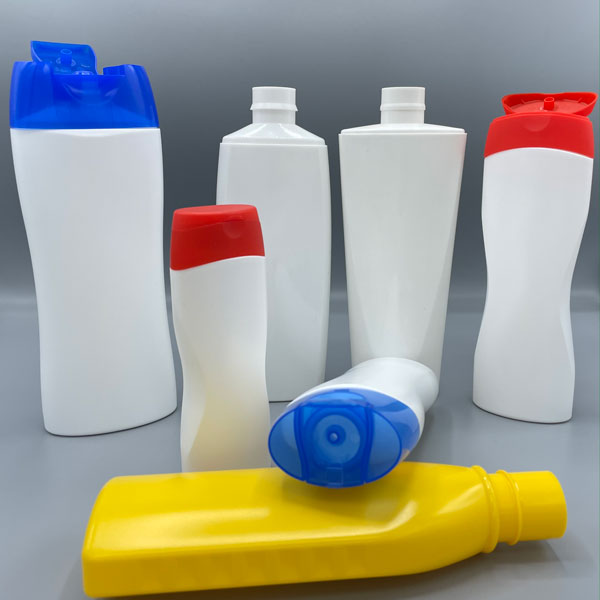

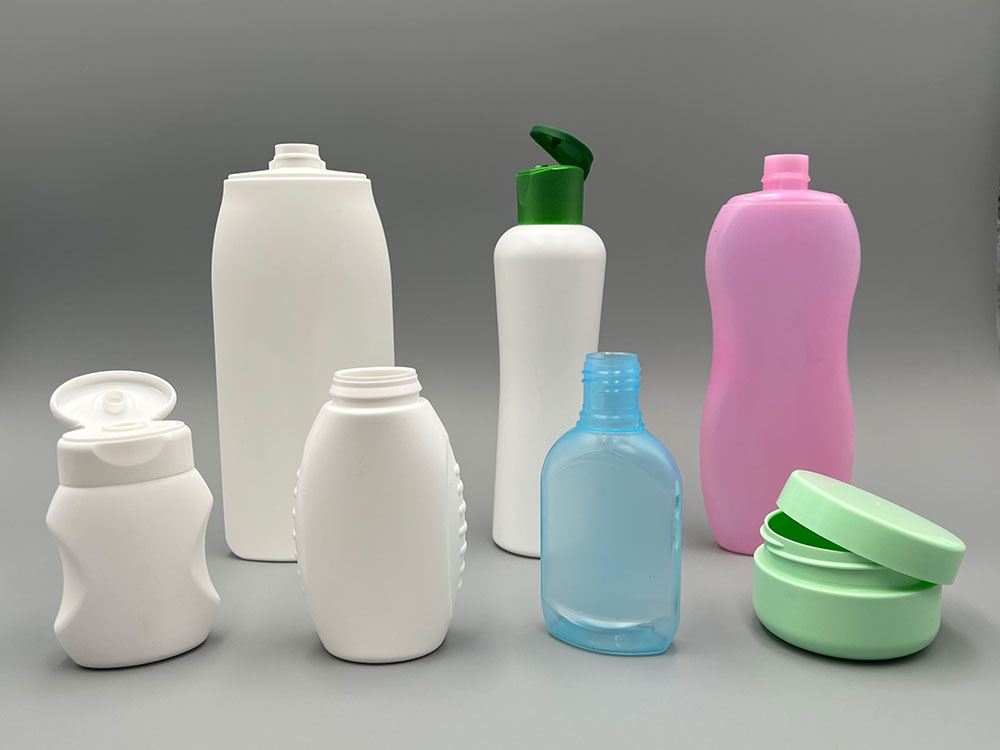

Cosmetic jars & bottles

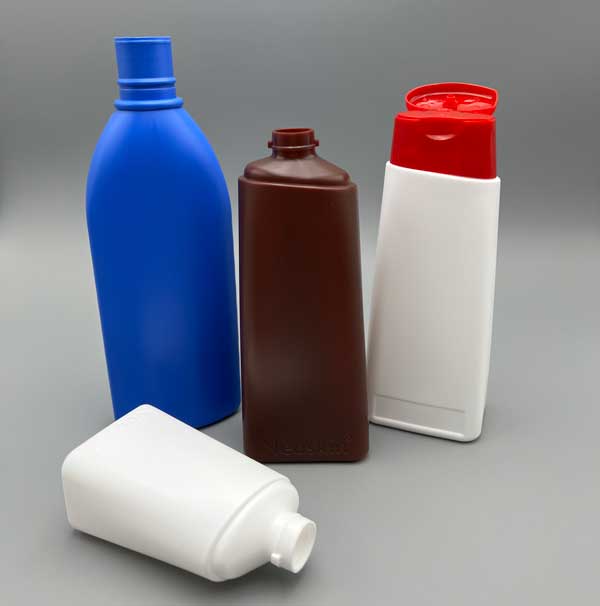

HDPE & PP containers

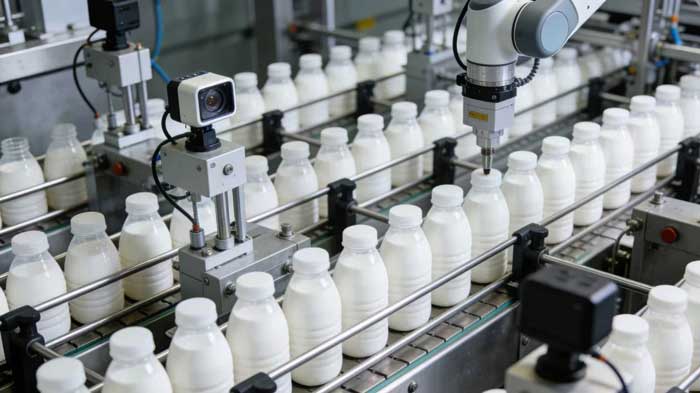

Food & dairy

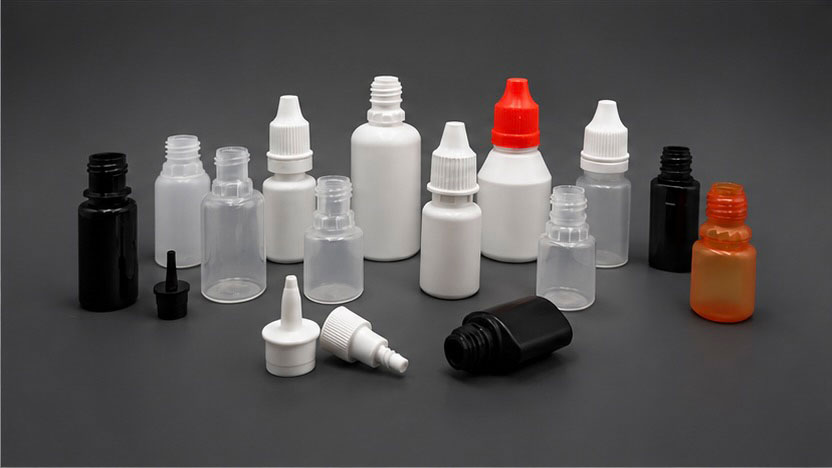

Medical & eye-drop bottles
Chemical & agro
Personal care
Caps & closures
Daily chemical

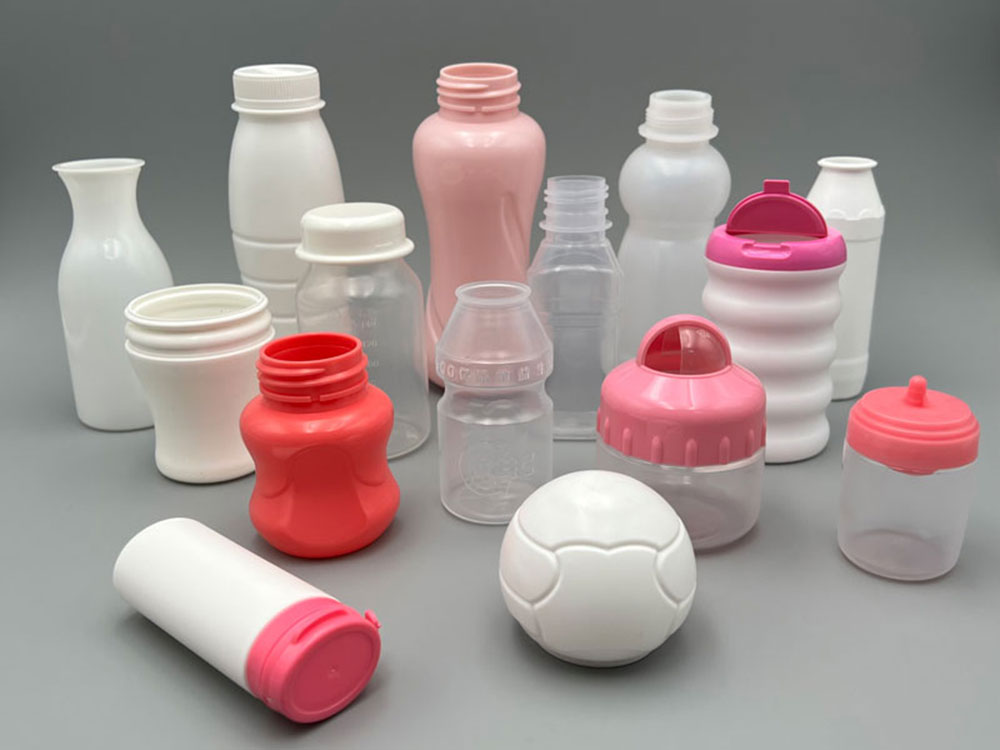

Food packaging
Proof, not promises
Built in a smart factory. Measured on real bottles.

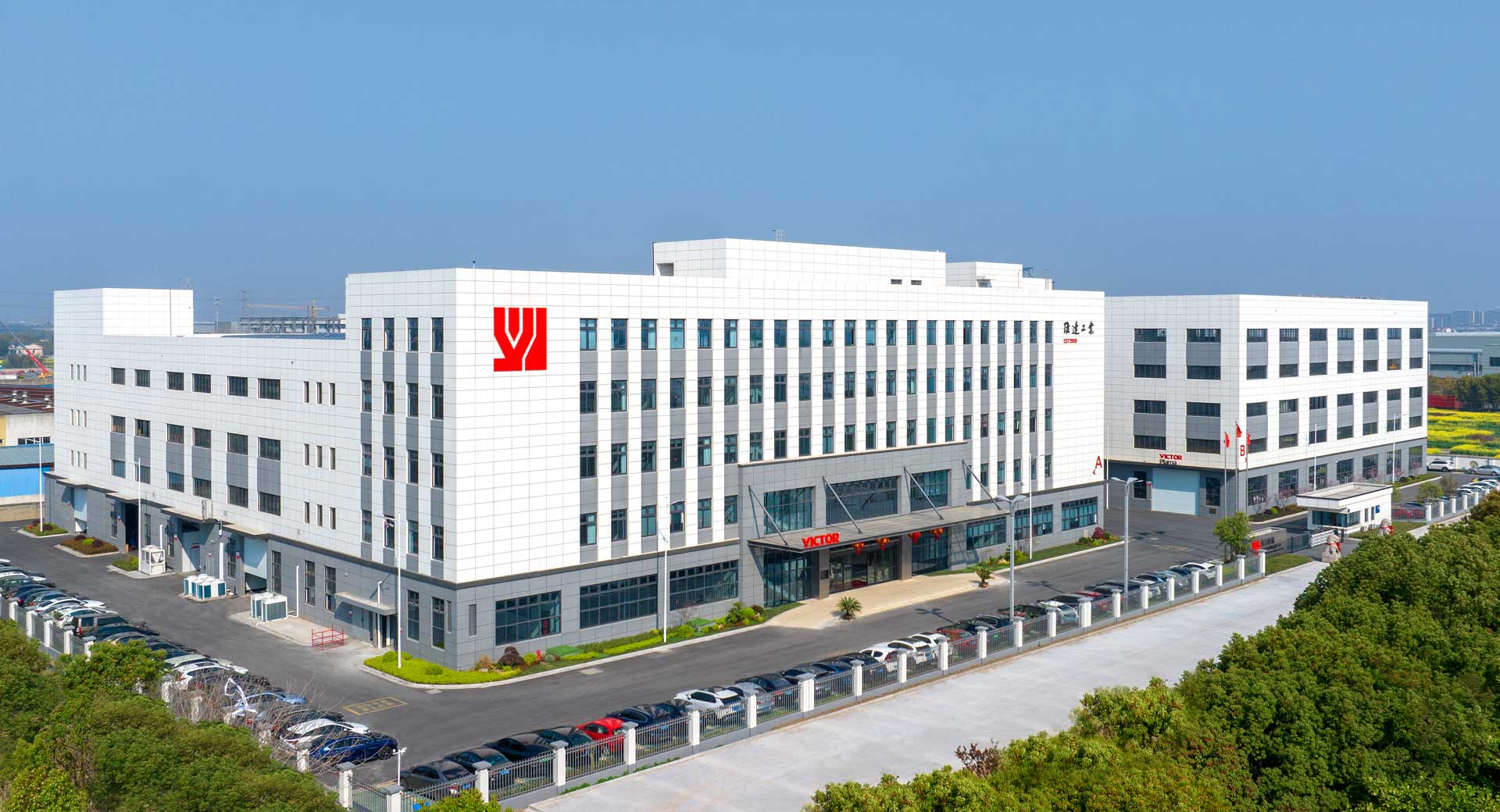

Robotic machining, an automated warehouse and digital production management keep every machine consistent – and our test data shows what that means on your line.
Hybrid · MSZ50S-HE vs MSZ50S
–14%
energy per kg of bottles – 80 kWh saved for every 1,000 kg.
All-electric · MSZ70AE vs MSZ70
–27.9%
energy per 100,000 bottles, with 14.6% less production time.
Certified
- ISO 9001
- ISO 14001
- ISO 45001
- CE
60+ invention patents
Global footprint
From Zhangjiagang to bottle plants in 50+ countries

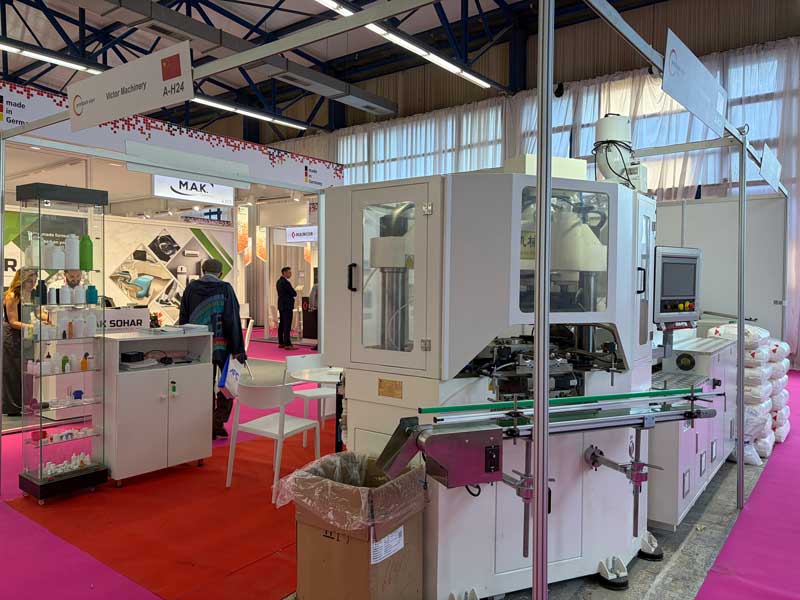

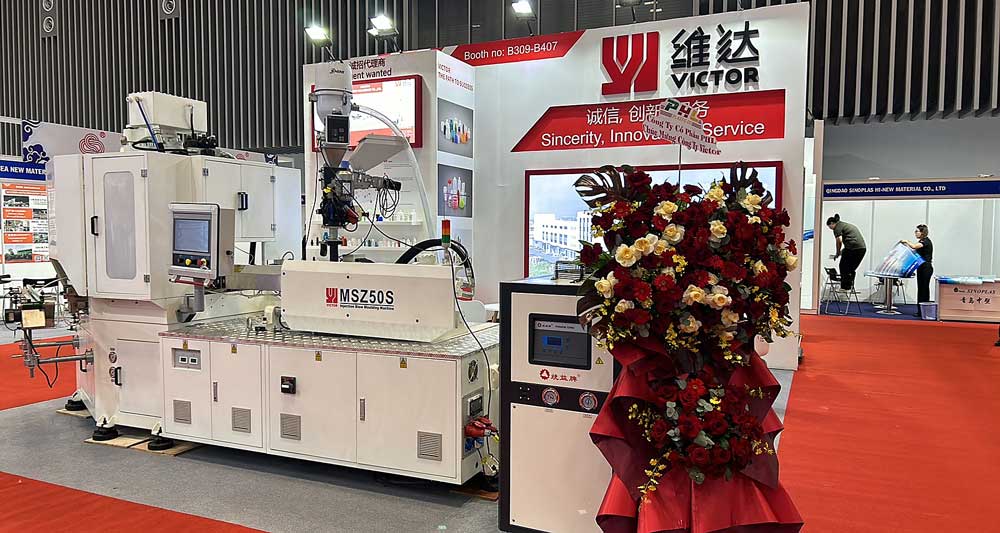

We bring running machines to the trade shows where our customers are – from CHINAPLAS and K to NPE, Africa, Central Asia and Latin America.
- 50+
- Countries & regions
- 24
- Trade shows since 2021
- 18
- Cities on the map
