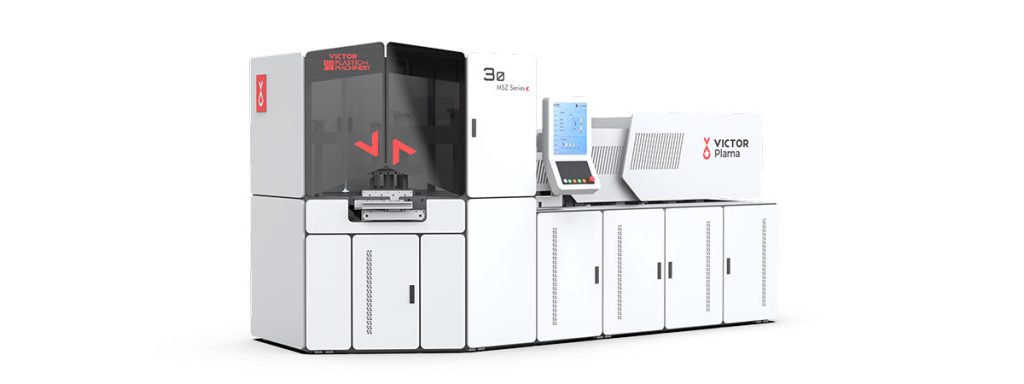

MSZ30 Hybrid Injection Blow Molding Machine

Technical Features

Horizontal injection system,achieve stable plasticizing and easy operation.
Single beam mold locking structure make mould loading more convenient.
Servo drive, energy saving 25-45%.
Large capacity mold installation size for higher output.
Stripping plate overturn pneumatically, safe and clean.

Optional

Electric preplasticizing, synchronous plasticizing can be realized.
Linear guide for barrel movement, low resistance, high precision.
Electric stripping, energy saving and clean.
Electric table rotation, high precision of rotation positioning.

播放视频

Product Application

Cosmetic shampoo bottles
Cosmetic jars
Reagent bottle
Pharmaceutical eye droppers

Advantage

Clamping parts

Special designed single crossbar dual-cylinder balance clamping system,for fast opening and closing mold while ensuring uniform distribution.

Rotation mechanism

Unique rotating mechanism design, and equipped with automatic lubrication system,ensure rotation precision be consistent.

Injection components

Alternative efficient plasticizing mixing screw, optimization of the injection unt,improve the injection stability and accuracy.

Hydraulic system

Equipped with electro-hydraulic servo system, the machine is running stable, low noise, high response and energy saving of 25% to 45%.

Barrel screw
Screw optimization design, clamp screw head assembly, with good plasticizing ability, wear resistance.

Processing principle

Injection blow molding machine has an accurate three-station rotary table design.After preform injection, the preform will be rotated to blow station and bottle forming, finally bottle rotated to stripping station.The bottles can be packaged directly or transported by conveyor to the next process.Because of the precise design of the mold, the I.B.M bottle has perfect neck, precise dimension, uniform wall thickness, which can meet high standard packaging needs of pharmaceutical, chemical, cosmetic and food packing industry.The I.B.M is suitable for PE, PP,PS, SAN, EVA, COC, PEEL, TPU, PETG, PLA etc material, bottle volume various from 1ml-1000ml.It is a professional equipment for high-efficiency packaging manufacturing.

Parameter Table

Technical Parameters
Preform systemUnitMSZ30
Screw diametermm40
Screw L/D L/D23:1
Shot volumecm3200
Injection weight(HDPE)g190
Max.Screw speedrpm10-225
Heating capacityKW8.3
No.of heating zoneQty3+N
Clamping system
Clamping force of preformKN289.7
Clamping force of blowingKN46.7
Opening stroke of mold plantenmm120
Lifting H of rotary tablemm65
Max.Platen size(L×W)mm400×270
Min.mold thickness(H)mm180
Heating capacity of mouldKW3
Stripping system
Stripping strokemm220
Dry cyclesec3.5
Driving system
Motor powerKW18.2
Hydraulic pressureMpa14
Product range
Suitable bottle rangeml5-800
MAX.bottle heightmm≤190
Max.Dia.of bottlemm≤100
Other
Min.air pressureMpa1
Discharge rate of compressed airm3/mm≥0.7
Water flowagem3/h3
Total rated power with mold heatingKW29.5
Dimension(L×W×H)M3.56×1.25×2.25
Net weinghtton4
