Injection Blow Molding vs Extrusion Blow Molding: Which Process Is Better for Medical Packaging?
The medical packaging industry operates under the most stringent standards of precision, sterility, and reliability, as the integrity of packaging directly impacts patient safety, drug efficacy, and regulatory compliance. Among the various manufacturing processes used to produce plastic medical packaging—such as vials, bottles, syringes, and diagnostic containers—blow molding stands out as a versatile and cost-effective method.
Two primary blow molding techniques dominate this sector: Injection Blow Molding (IBM) and Extrusion Blow Molding (EBM). While both processes are capable of producing hollow plastic components, their inherent differences in design, precision, and performance make one far more suitable for the unique demands of medical packaging. This article compares the two processes, with a focus on the distinct advantages of Injection Blow Molding, and argues that IBM is the superior choice for medical packaging applications.
To understand the comparison, it is first necessary to outline the basic mechanics of each process. Extrusion Blow Molding involves melting plastic resin and extruding it into a continuous tube-shaped parison (a hollow preform), which is then clamped into a mold and inflated with compressed air to take the shape of the mold cavity. This process is straightforward, cost-effective for large-volume production of simple shapes, and has been widely used in industries such as food and beverage packaging.
In contrast, Injection Blow Molding combines two key steps: first, injecting molten plastic into a preform mold to create a precise, thick-walled preform (with the neck and thread details fully formed), and second, transferring the preform (while still hot) to a blow mold where compressed air inflates it into the final product. This two-step process, often automated in three or four stations, eliminates many of the limitations of EBM and introduces advantages that align perfectly with medical packaging requirements.
Advantages of Injection Blow Molding compared to Extrusion Blow Molding
1. IBM’s technological advantages in the field of medical packaging
The most critical advantage of Injection Blow Molding for medical packaging is its unparalleled precision and consistency, particularly in the formation of container necks and threads. Medical packaging, such as vials for injectable drugs or bottles for oral medications, requires an airtight seal to prevent contamination, moisture ingress, or drug leakage—failures that could render medications ineffective or even dangerous.
In EBM, the parison is extruded as a continuous tube, and the neck is formed during the clamping and inflation process. This often results in inconsistent neck dimensions, uneven threads, and slight irregularities in the sealing surface, which can compromise the fit of caps, stoppers, or septa. Even minor deviations in neck diameter or thread pitch can lead to poor sealing, increasing the risk of microbial contamination or drug degradation.
In contrast, IBM forms the neck and thread details during the initial injection molding step, where molten plastic is forced into a precision-machined preform mold under high pressure (10–40 MPa). This ensures that every container has identical neck dimensions, smooth threads, and a flat, uniform sealing surface—critical for achieving a reliable hermetic seal. The preform’s neck is fully cooled and solidified before transfer to the blow mold, so it retains its precision throughout the inflation process.
This level of consistency is especially important for medical containers that require compatibility with standard closures, such as rubber stoppers for vials or screw caps for pill bottles. Additionally, IBM produces containers with exceptional wall thickness uniformity, eliminating weak points that could break or crack during handling, sterilization, or transportation. Studies have shown that IBM containers have wall thickness variations of less than 5%, compared to 10–15% for EBM containers — a significant difference when packaging fragile or high-value medical products.
Another key advantage of IBM is its superior ability to maintain sterility and minimize contamination, a non-negotiable requirement for medical packaging. The medical industry mandates strict compliance with Good Manufacturing Practices (GMP), including clean room production (typically GMP classes C and D for blow molding processes) and minimal human contact with products.
EBM poses several contamination risks: the extruded parison is exposed to the surrounding environment before being clamped into the mold, and the process often generates excess plastic waste (5–30% of the total material) that can accumulate in the production area, creating a potential source of particulate contamination. Additionally, EBM requires post-processing steps such as trimming excess plastic from the container’s bottom or neck, which can introduce dust or debris and increase the risk of product contamination.
2. IBM also contributes to automated production and environmental protection
Injection Blow Molding addresses these issues through its automated, closed-loop process. The entire production cycle—from preform injection to final product ejection—occurs within a sealed, controlled environment, minimizing exposure to airborne contaminants.
Unlike EBM, IBM produces almost no waste, as the preform is precisely sized to form the final container without excess material. This eliminates the need for post-processing trimming, reducing both waste and the risk of contamination.
Furthermore, modern IBM machines often feature three or four stations that operate concurrently, allowing for fully automated production with no human contact—critical for maintaining sterility in medical packaging. One-step IBM machines, in particular, integrate injection, blow molding, and ejection into a single unit, achieving “no-hand contact” throughout the production process, which is essential for passing microbial testing and meeting GMP standards.
3. IBM’s compatibility with materials
IBM also offers greater versatility in material compatibility, a crucial factor for medical packaging that must interact safely with a wide range of drugs, biologics, and diagnostic reagents. Medical packaging materials must be biocompatible (complying with ISO 10993 standards), chemically stable (resistant to degradation by drugs or disinfectants), and compatible with common sterilization methods (such as autoclaving, ethylene oxide, or gamma irradiation).
EBM is primarily limited to low-density polyethylene (LDPE) and high-density polyethylene (HDPE), which have limited chemical resistance and may not be suitable for packaging aggressive drugs or biologics. LDPE, for example, has poor oxygen barrier properties, making it unsuitable for long-term storage of oxygen-sensitive medications.
In contrast, IBM can process a wide range of medical-grade plastics, including polyethylene (PE), polypropylene (PP), polyethylene terephthalate (PET), cyclic olefin copolymer (COC), and cyclic olefin polymer (COP). These materials offer superior properties: PP is resistant to sterilization and chemical degradation, making it ideal for injectable vials; COC and COP provide exceptional transparency and low extractables, making them suitable for diagnostic containers and drug delivery systems.
IBM’s ability to process engineering plastics like COC and COP also enables the production of highly transparent containers, which are essential for visual inspection of drugs (e.g., checking for particulates in injectable solutions). Additionally, IBM can produce multi-layer containers by co-injecting different materials, combining the barrier properties of one material (e.g., EVOH for oxygen barrier) with the mechanical strength of another (e.g., PP), further expanding its applicability for specialized medical packaging needs.
4. IBM vs EBM
While EBM has advantages in producing large, irregularly shaped containers (such as large diagnostic canisters) and has lower initial equipment costs, these benefits are irrelevant for the majority of medical packaging applications, which are small, standardized, and require high precision.
EBM’s lower precision, higher contamination risk, and limited material compatibility make it unsuitable for critical medical packaging, such as vials for vaccines, syringes, or diagnostic reagent containers. In contrast, IBM’s precision, sterility, material versatility, and consistency directly address the core requirements of medical packaging, ensuring that products meet regulatory standards and protect patient safety.
Regulatory compliance is another area where IBM excels. Medical device and pharmaceutical packaging are heavily regulated by agencies such as the U.S. Food and Drug Administration (FDA) and the European Medicines Agency (EMA), which require strict documentation of production processes, material traceability, and product consistency.
IBM’s automated process is highly controllable and repeatable, with precise monitoring of temperature, pressure, and cycle times—making it easier to maintain consistent production and comply with regulatory requirements. The minimal waste and closed-loop production of IBM also simplify material traceability, as every batch of plastic can be tracked from raw material to final product. EBM’s variability in product quality and higher waste levels make regulatory compliance more challenging, as inconsistencies in container dimensions or contamination risks can lead to costly delays or product recalls.
The development prospects of IBM in the field of Medical Packaging
In the coming years, demand for high-precision, sterile medical packaging will continue to grow, driven by:
- biologics and vaccines
- diagnostics and point-of-care testing
- personalized medicine
- stricter GMP and regulatory requirements
Injection Blow Molding is well positioned to remain a mainstream solution because it delivers repeatable precision, closed-loop automation, and broad material compatibility, enabling manufacturers to meet evolving quality and compliance requirements.
Application cases of IBM in the field of Medical Packaging
Injection Blow Molding is widely used to manufacture medical packaging products such as:

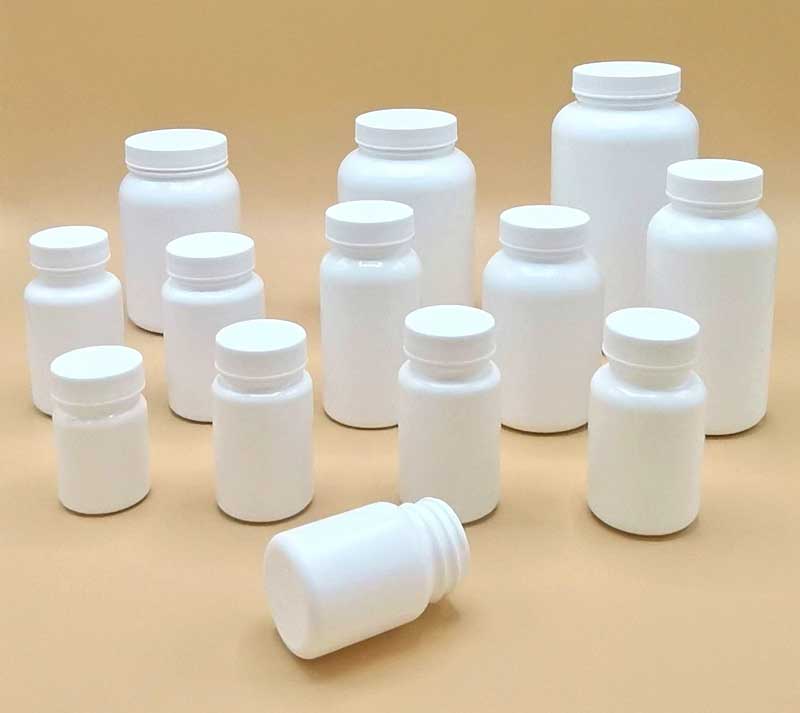

- small pharmaceutical bottles (PP/PE)
- vials and diagnostic reagent bottles (COC/COP)
- ophthalmic solution bottles
- nasal spray bottles
- laboratory sample containers
These applications rely on IBM’s accuracy in neck finish, sealing reliability, cleanliness, and consistent wall thickness.
Future Prospects and Conclusion
In conclusion, while both Injection Blow Molding and Extrusion Blow Molding are viable blow molding processes, IBM is clearly the superior choice for medical packaging. Its unparalleled precision ensures reliable sealing and consistent product quality, its closed-loop automated process minimizes contamination and meets GMP standards, its material versatility accommodates the diverse needs of medical products, and its repeatability simplifies regulatory compliance.
These advantages directly address the critical priorities of the medical packaging industry: patient safety, drug efficacy, and regulatory adherence. As the medical industry continues to evolve, with increasing demand for high-precision, sterile packaging for biologics, diagnostics, and personalized medicine, Injection Blow Molding will remain the gold standard for medical packaging manufacturing.
EBM, while useful for non-critical, large-volume packaging applications, cannot match the performance and reliability of IBM when it comes to protecting the integrity of medical products and ensuring patient safety.
