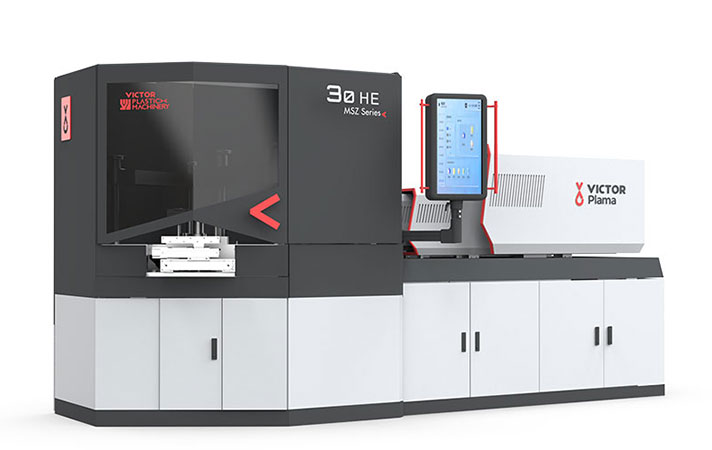

MSZ30 Injection Blow Molding Machine
MSZ50 Injection Blow Molding Machine
MSZ60S Injection Blow Molding Machine
MSZ70 Injection Blow Molding Machine

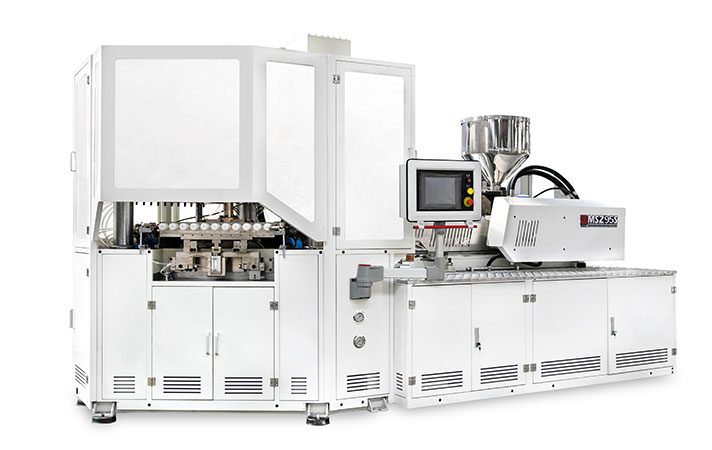

MSZ95 Injection Blow Molding Machine

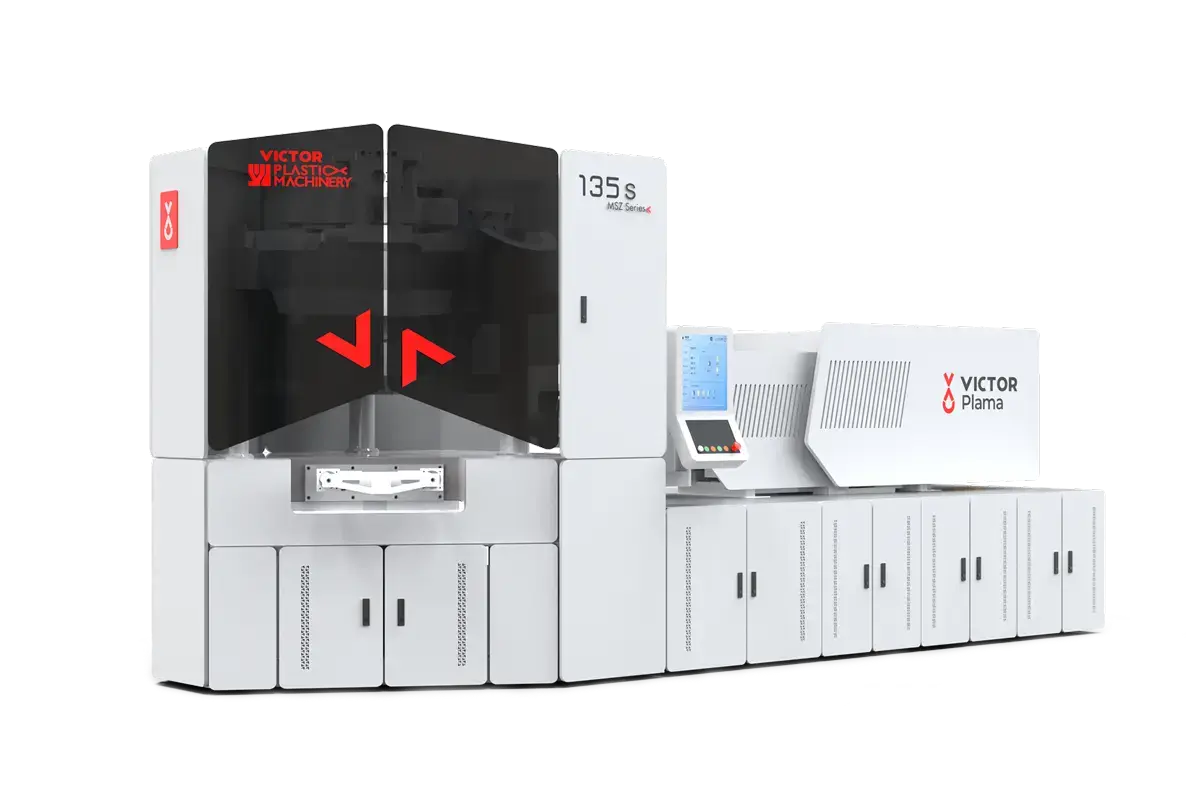

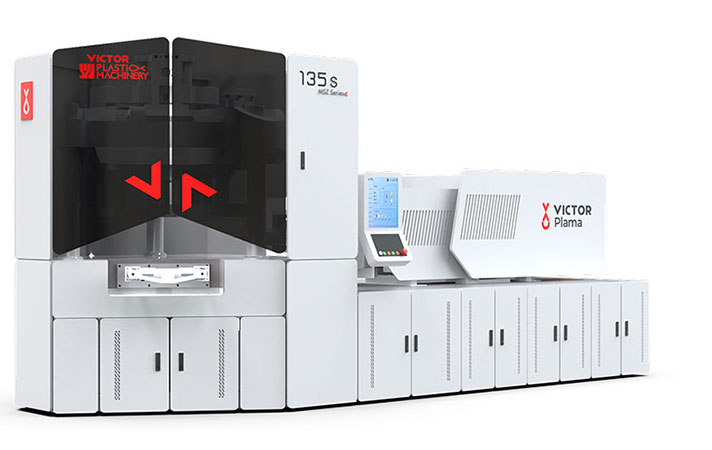

MSZ135 Injection Blow Molding Machine

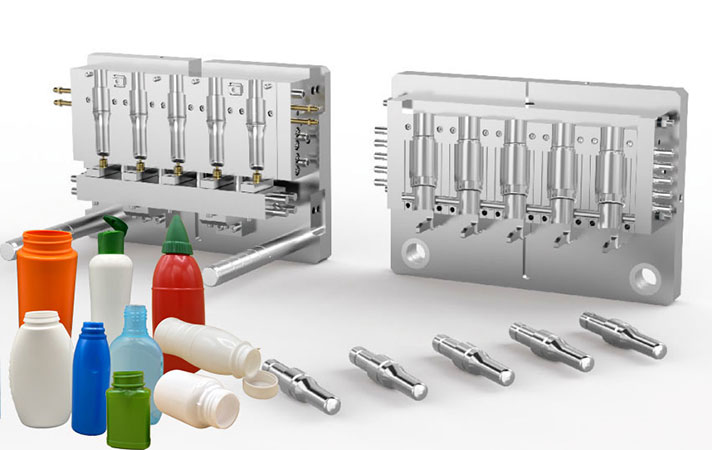

Application Field:

pharmacy industrial
chenical industrial
food pack industrial
cosmetic industrial

Machine advantage:


  • Clamping parts: special designed single crossbeam dual-cylinder balance clamping system, for fast opening and closing mold while ensuring uniform distribution

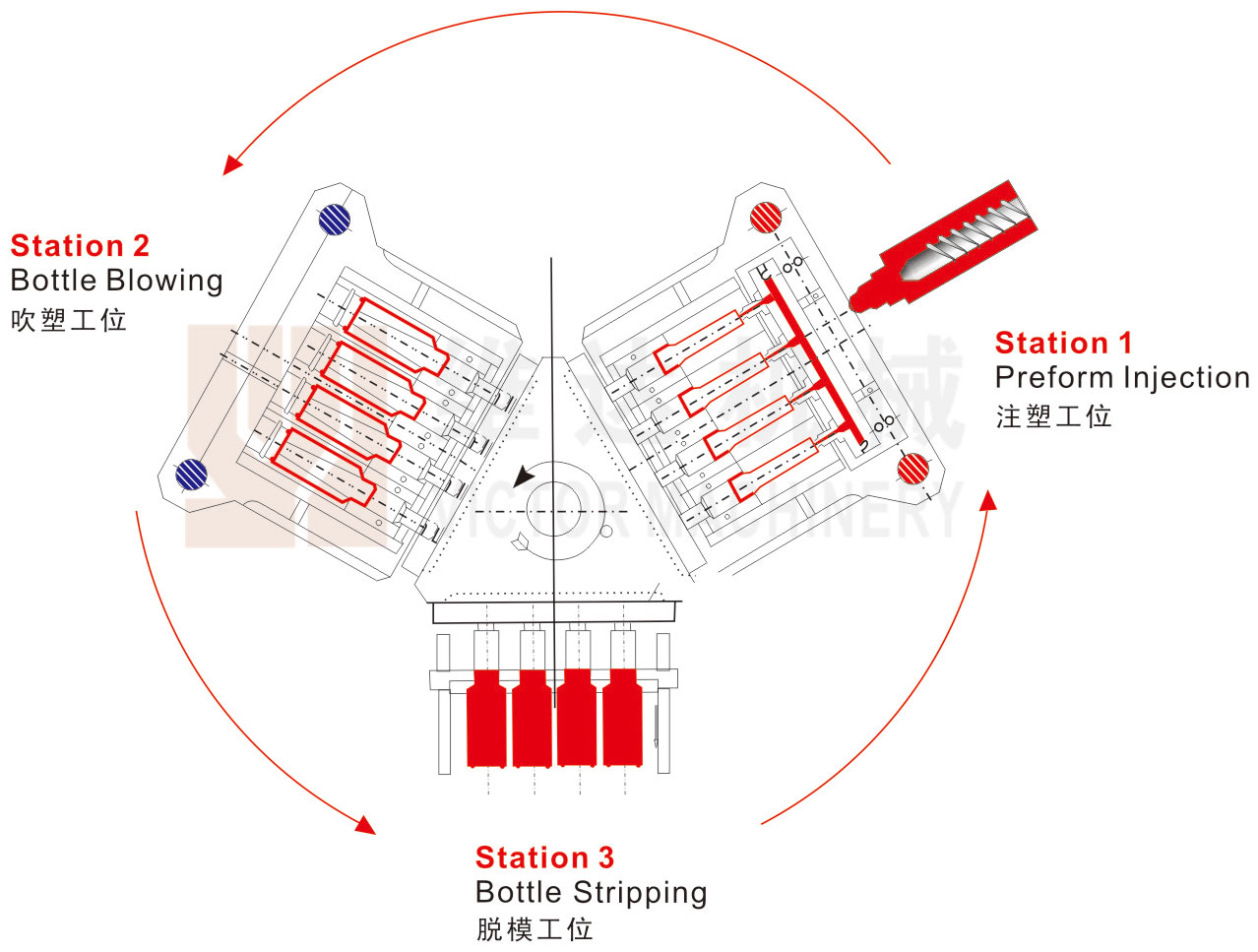

  • Rotation mechanism: unique rotating mechanism design, and equipped with automatic lubrication system,ensure rotation precision be consistent.
  • Injection components: Alternative efficient plasticizing mixing screw, optimization of the injection unit,improve the injection stability and accuracy in ensuring
  • Hydraulic system: Equipped with electro-hydraulic servo system, the machine is running stable, low noise, high response and energy saving of 25% to 45%
  • Rotation mechanism: unique rotating mechanism design, and equipped with automatic lubrication system,ensure rotation precision be consistent.
Preform system Unit MSZ30 MSZ50H MSZ60S MSZ95 MSZ135
Screw diameter mm 40 45 45 50 50 55 60 65 65 70
Screw L/D L/D 23:1 23:1 23:1 23:1 23:1 23:1 23:1 23:1 23:1 23:1
Shot volume cm3 200 254 254 314 314 380 565 660 660 770
Injection weight(HDPE) g 190 241 241 298 298 360 535 625 625 730
Max.Screw speed rpm 10-225 10-235 10-235 10-235 10-235
Heating capacity KW 8.3 10 10.8 12.6 15
No.of heating zone Qty 3+N 4+N 3+N 3+N 3+N
Clamping system
Clamping force of preform KN 292 500 750 931 1323
Clamping force of blowing KN 46.7 89 89 176 235
Opening stroke of mold planten mm 120 130 140 140 140
Lifting H of rotary table mm 65 70 70 75 75
Max.Platen size(L×W) mm 400×270 560×390 740×390 900×480 1400×500
Min.mold thickness(H) mm 180 240 280 280 280
Heating capacity of mould KW 3 3.6 6 8 10
Stripping system
Stripping stroke mm 220 270 200 240 270
Dry cycle sec 3.5 3.5 3.5 4 4.5
Driving system
Motor power KW 15 22 30 45+5.5 30+30
Hydraulic pressure Mpa 15 15 15 14 14
Product range
Suitable bottle range ml 5-800 5-800 5-800 5-800 5-800
MAX.bottle height mm ≤190 ≤200 ≤200 ≤220 ≤220
Max.Dia.of bottle mm ≤100 ≤100 ≤100 ≤100 ≤100
Other
Min.air pressure Mpa 1 1 1 1 1
Discharge rate of compressed air m3/mm ≥0.7 ≥0.7 ≥0.8 ≥1 ≥1.2
Water flowage m3/h 3 4 5 6 6
Total rated power with mold heating KW 26.3 35.6 46.8 71.1 85
Dimension(L×W×H) M 3.56×1.25×2.25 4.11×1.44×2.5 4.3×1.69×2.45 4.5×2.1×2.7 5.4×2.5×2.9
Net weinght ton 4 5.7 8.6 12 15
