Technical Features
Horizontal injection system,achieve stable plasticizing and easy operation.
Single beam mold locking structure make mould loading more convenient.
Servo drive, energy saving 25-45%.
Large capacity mold installation size for higher output.
Stripping plate overturn pneumatically, safe and clean.
Optional
Electric preplasticizing, synchronous plasticizing can be realized.
Linear guide for barrel movement, low resistance, high precision.
Electric stripping, energy saving and clean.
Electric table rotation, high precision of rotation positioning.
Product Application
Advantage
Special designed single crossbar dual-cylinder balance clamping system,for fast opening and closing mold while ensuring uniform distribution.
Unique rotating mechanism design, and equipped with automatic lubrication system,ensure rotation precision be consistent.
Alternative efficient plasticizing mixing screw, optimization of the injection unt,improve the injection stability and accuracy.
Equipped with electro-hydraulic servo system, the machine is running stable, low noise, high response and energy saving of 25% to 45%.
Processing principle

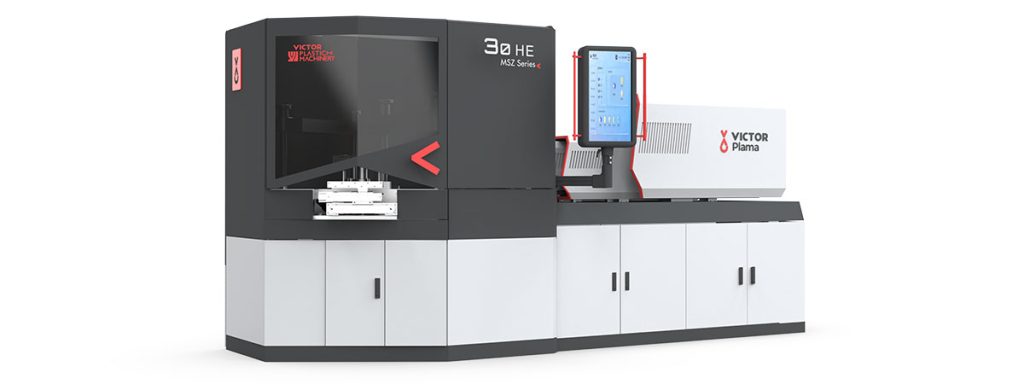

The MSZ30 Hybrid IBM machine combines servo-driven precision with hydraulic power to deliver an energy-efficient and stable injection-blow molding process for small HDPE/PP containers. The hybrid system ensures smooth plasticizing, fast response, and reduced energy consumption—making it ideal for pharmaceutical, cosmetic, and laboratory packaging applications.
Using a high-accuracy three-station rotary table, the preform is injected, transferred to the blowing station for container forming, and then rotated to the stripping station for clean discharge. This synchronized process guarantees excellent neck finish, uniform wall thickness, and highly consistent bottle dimensions.
Compatible with multiple materials such as PE, PP, PS, PETG, COC, and PLA, the MSZ30 Hybrid is engineered for high-performance small-bottle production with superior stability and low operating cost.
Parameter Table
| Preform system | Unit | MSZ30HE | |
|---|---|---|---|
| Screw diameter | mm | 40（标配） | 45 |
| Screw L/D | L/D | 23:1 | 23:1 |
| Shot volume | cm³ | 200 | 254 |
| Injection weight (HDPE) | g | 190 | 241 |
| Max. screw speed | rpm | 10–225 | |
| Heating capacity | kW | 9.6 | |
| No. of heating zones | Qty | 3+N | |
| Clamping system | |||
| Clamping force (preform) | kN | 323.2 | |
| Clamping force (blowing) | kN | 46.7 | |
| Opening stroke of mold platen | mm | 120 | |
| Lifting height of rotary table | mm | 65 | |
| Max. platen size (L×W) | mm | 400×270 | |
| Min. mold thickness (H) | mm | 180 | |
| Heating capacity of mold | kW | 3 | |
| Stripping system | |||
| Stripping stroke | mm | 220 | |
| Dry cycle | sec | 3 | |
| Driving system | |||
| Motor power | kW | 12 | |
| Hydraulic pressure | MPa | 14 | |
| Product range | |||
| Suitable bottle volume | ml | 5–800 | |
| Max. bottle height | mm | ≤190 | |
| Max. bottle diameter | mm | ≤100 | |
| Other | |||
| Compressed air pressure | MPa | 1 | |
| Compressed air discharge | m³/min | ≥0.8 | |
| Cooling water flow | m³/h | 3 | |
| Total rated power (with mold heating) | kW | 42 | |
| Dimension (L×W×H) | m | 3.56×1.25×2.25 | |
| Net weight | ton | 4 | |
