Injection Blow Molding Machines for 2ml–2L Bottles

Product Application

Victor Machinery's injection blow molding machines are suitable for a wide range of plastic bottle production, from 2ml eye drop containers to 2L juice bottles. Our machines are trusted by leading brands in pharmaceutical, cosmetic, food and healthcare industries.

Cosmetic shampoo bottles

Pharmaceutical spring bottles

Health care hand sanitizer

Pharmaceutical eye droppers

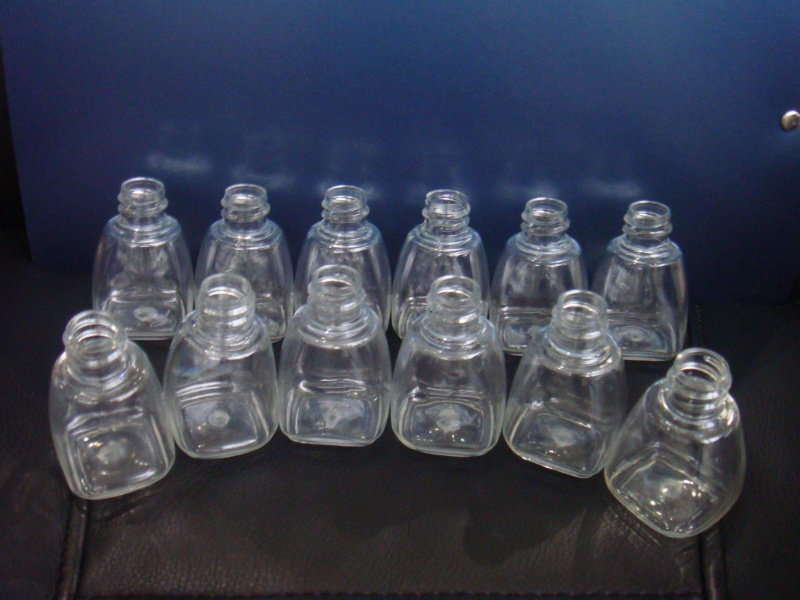

Cosmetic jars

Pesticide bottles

Milk& juice bottles

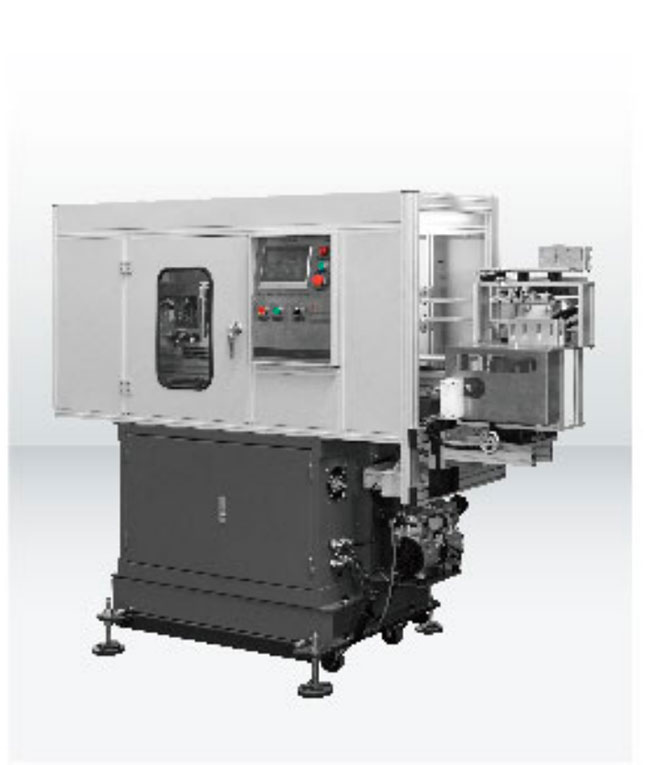

IML bottles

Advantage

Special designed single crossbar dual-cylinder balance clamping system,for fast opening and closing mold while ensuring uniform distribution.

Unique rotating mechanism design, and equipped with automatic lubrication system,ensure rotation precision be consistent.

Alternative efficient plasticizing mixing screw, optimization of the injection unt,improve the injection stability and accuracy.

Equipped with electro-hydraulic servo system, the machine is running stable, low noise, high response and energy saving of 25% to 45%.

Screw optimization design, clamp screw head assembly, with good plasticizing ability, wear resistance.

Processing principle

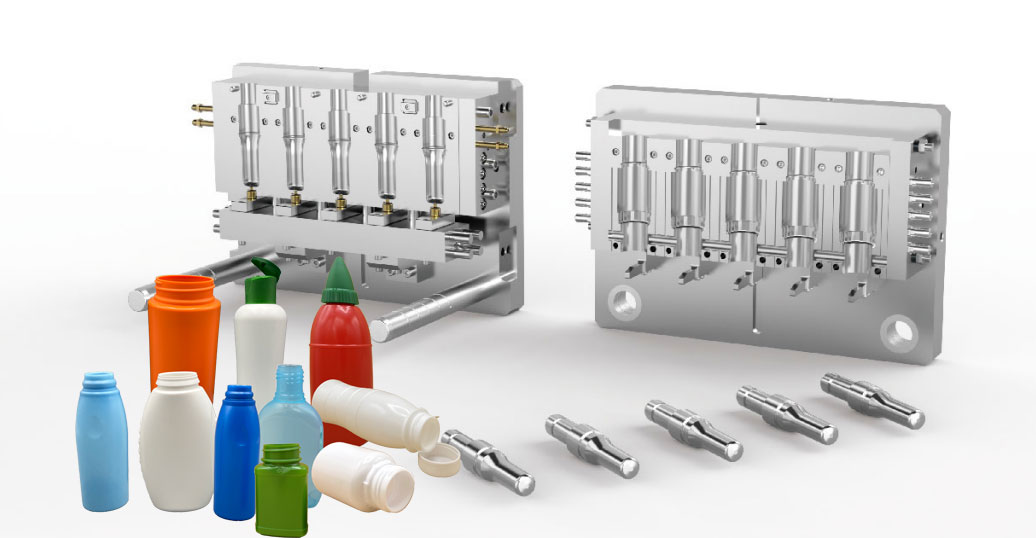

Injection blow molding machine has an accurate three-station rotary table design.After preform injection, the preform will be rotated to blow station and bottle forming, finally bottle rotated to stripping station.The bottles can be packaged directly or transported by conveyor to the next process.Because of the precise design of the mold, the I.B.M bottle has perfect neck, precise dimension, uniform wall thickness, which can meet high standard packaging needs of pharmaceutical, chemical, cosmetic and food packing industry.The I.B.M is suitable for PE, PP,PS, SAN, EVA, COC, PEEL, TPU, PETG, PLA etc material, bottle volume various from 1ml-1000ml.It is a professional equipment for high-efficiency packaging manufacturing.

Parameter Table

Preform system	Unit	MSZ30	MSZ50H	MSZ50S	MSZ70	MSZ70S	MSZ95S	MSZ135
Screw diameter	mm	40	50	50	55	55	65	70
Screw L/D	L/D	23:1	23：1	23：1	23：1	23：1	23：1	23：1
Shot volume	cm³	200	392	392	475	475	839	1077
Injection weight(HDPE)	g	190	372	372	450	450	795	1020
Max.Screw speed	rpm	10-225	10-235	10-235	10-235	10-235	10-235	10-235
Heating capacity	KW	8.3	10	10	10.8	10.8	12.6	15
No.of heating zone	Qty	3+N	4+N	4+N	3+N	3+N	3+N	3+N
Clamping system
Clamping force of preform	KN	289.7	504	528	742	712	1008	1344
Clamping force of blowing	KN	46.7	89	93.4	89	107.7	221	235
Opening stroke of mold planten	mm	120	130	165	140	165	155	155
Lifting H of rotary table	mm	65	70	80	70	80	75	75
Max.Platen size(L×W)	mm	400×270	560×390	560×390	800×390	800×390	900×480	1400×500
Min.mold thickness(H)	mm	180	240	240	280	280	280	280
Heating capacity of mould	KW	3	3.6	3.6	6	10	10	10
Stripping system
Stripping stroke	mm	220	270	270	240	295	260	260
Dry cycle	sec	3.5	3.5	2	3.5	2.1	3	4.5
Driving system
Motor power	KW	18.2	23	23	39.4	31	26+26	39.4+39.4
Hydraulic pressure	Mpa	14	14	14	14	14	14	14
Product range
Suitable bottle volume	ml	5-800	5-800	5-800	5-800	5-800	5-800	5-800
MAX.bottle height	mm	≤190	≤200	≤200	≤200	≤200	≤220	≤220
Max.Dia.of bottle	mm	≤100	≤100	≤100	≤100	≤100	≤100	≤100
Other
Compressed air pressure	Mpa	1	1	1	1	1	1	1
Compressed air discharge	m³/mm	≥0.7	≥0.7	≥0.7	≥0.8	≥0.8	≥1	≥1.2
Cooling water flow	m³/h	3	4	4	5	5	6	6
Total rated power with mold heating	KW	29.5	36.6	36.6	56.2	59	75.6	106.8
Dimension(L×W×H)	M	3.56×1.25×2.25	4.11×1.57×2.5	4.11×1.57×2.5	4.1×1.78×2.6	4.39×1.91×2.54	5.0×2.0×2.6	6.0×2.5×2.6
Net weinght	ton	4	5.7	5.7	9	9	12	15
