How to Choose an Injection Blow Molding Machine for Small Bottles
How to choose an injection blow molding machine for small bottles: bottle size, resin, neck precision, cavity count, output target and medical-grade needs.

The short answer
Start from the bottle, not the machine: bottle volume and height, resin, neck precision, required output and cavity count determine the clamping force and shot size you need. For medical-grade small bottles, also check cleanroom suitability and drive type.
What this guide helps you decide
- Start with bottle capacity, resin, neck precision and target output.
- Compare hydraulic, hybrid and all-electric IBM options by production goals.
- Match mold cavities, automation and after-sales support to long-term ROI.
On this page
How to Choose the Right Injection Blow Molding Machine for Small Bottle Production
Global demand for medical-grade precision small bottles including eye drop bottles and cosmetic vials keeps rising steadily. Driven by global aging population, growing eye health needs and booming high-end skincare industry, this packaging sector maintains stable growth momentum worldwide.
Strict international pharmaceutical and beauty industry regulations have raised higher standards for container cleanliness, sealing performance and non-toxic material safety. Such precision small bottles have become indispensable core packaging for sterile medicines and high-end cosmetic essences.
Asia-Pacific has turned into the fastest-growing consumption market, while global clients are increasingly pursuing high-precision, stable and cost-effective production solutions. As professional injection blow molding machine suppliers, Victor Machinery’s equipment perfectly meets mass production needs of these tiny high-standard bottles, supporting manufacturers to seize market opportunities and satisfy the long-term expanding global supply demand.
Product Positioning

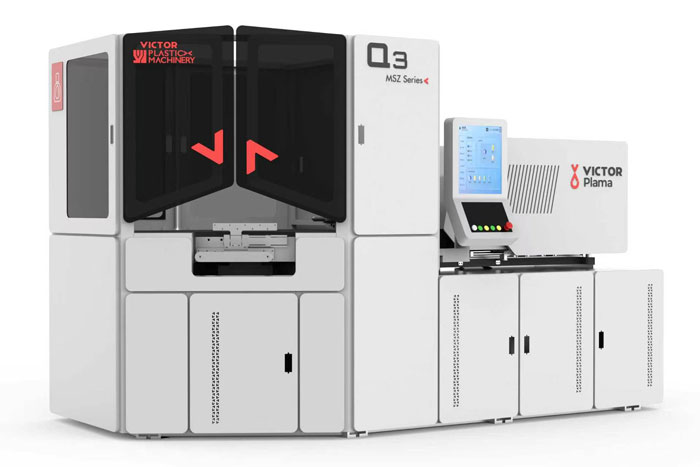

Victor Q3 All-Electric Injection Blow Molding Machine is dedicated to high-end medical packaging and precision small bottle molding applications. It fully replaces conventional general-purpose models and meets high-level production criteria including GMP compliance, Class 100 cleanroom standards and full data traceability.
Compliant with Medical-Grade Equipment Standards
Dust-proof and oil-proof structural design
Low-noise operation
Corrosion-resistant, smooth and easy-to-clean machine surface
Stable material channel performance
Installation layout compatible with cleanroom sanitation
Full traceability of production and operation data
Core Advantages
1.Oil-free All-electric Design: No hydraulic circuit and zero oil leakage, ideal for medical clean workshop environments.
2.Ultra-high Precision: Full closed-loop servo control achieves positioning accuracy of 0.01mm with product weight deviation within ±0.02g, far exceeding the standard tolerance of ±0.3g.
3.High Efficiency & Energy Saving: Servo direct drive eliminates energy waste, cutting cooling water consumption by 70%-90% and reducing operating noise by 10-15dB.
4.Complete Data Traceability: Supports parameter saving, operation log recording and MES system connection to satisfy medical industry compliance regulations.
5.Specially Designed for Precision Small Bottles: Equipped with dedicated screws for stable molding of 5-100ml miniature bottles.
6.Space-saving Layout: Compact structure raises space utilization rate by 15%. (MSZ30: 3.6m in length; Q3: 3.0m in length)
Demo Case

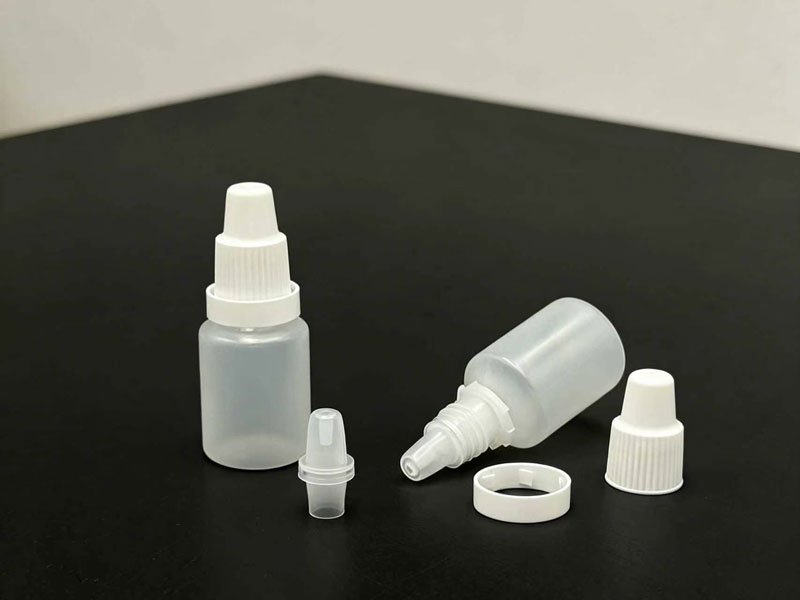

Mold: 5ml-1.5g-8cavity-eye drop bottle
Cycle time: 8.3s
Daily output: 83277pcs / 24hours
Conclusion
Victor all-electric injection blow molding machines are pivotal for modern plastic packaging manufacturing. Replacing hydraulic systems with full servo drives, they cut energy use by 20%–40%, lower noise ≤75dB, and eliminate oil leakage for cleaner production. High precision ensures consistent quality with minimal defects, ideal for pharmaceutical, food, and medical packaging. Reduced maintenance and smart monitoring boost efficiency and sustainability, making them essential for high-standard, eco-friendly production.
Continue your injection blow molding research
Plan your bottle project
Get a machine and mold recommendation for your bottle
Share your bottle drawing or sample, resin and target output. Victor's engineers will recommend a suitable MSZ model, cavity layout and mold concept.
Request a technical proposal- Bottle drawing, sample or photo
- Material: HDPE, PP, PS, PETG or other resin
- Target output and neck finish
- Destination country for delivery
