Injection blow molding machine

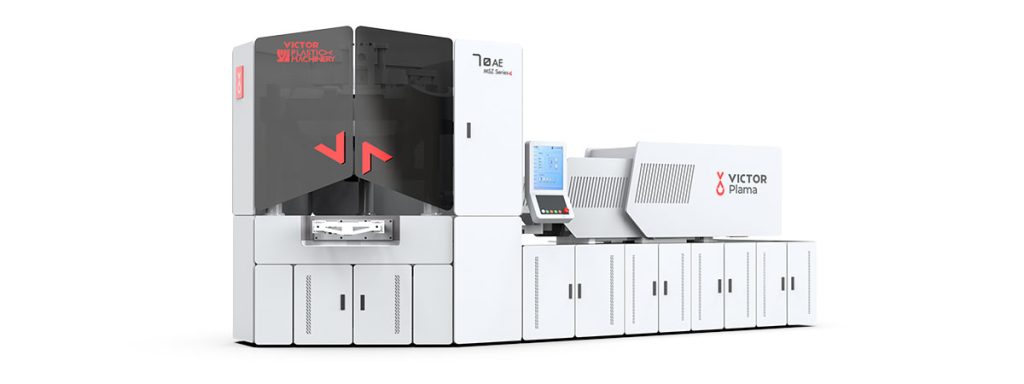

MSZ70AE All-Electric IBM Machine – High-Speed Injection-Blow Solution
All-electric servo drives control injection, clamping and rotation precisely with low noise and fast response. High-rigidity clamping, a linear-guide injection carriage and a clean stripping mechanism suit continuous pharmaceutical and premium packaging production.
- Bottle volume
- 5–2000 ml
- Dry cycle
- 2.7 s
- Clamping force
- 712 kN
- Screw diameter
- 50 / 55 mm
Technical features
Technical Features
- Both injection and blowing stations adopt three cylinder mold locking structure, open and close the mold fast, shorten production cycle with high efficiency.
- Servo double oil hydraulic drive system with accurate control, energy saving more than 25%.
- The triangular beam structure has high rigidity and good stability.
- Linear guide for barrel movement, low resistance, high precision.
- Stripping plate overturn pneumatically, safe and clean.
- Strong versatility, compatible with MSZ60 mold.
Optional configurations
- Electric preplasticizing, synchronous plasticizing can be realized.
- Electric stripping, energy saving and clean.
- Electric table rotation, high precision of rotation positioning.
Machine details
Key components of the MSZ70AE
From the clamping unit to the control system, every key component is chosen for stable continuous production and easy maintenance.
Electrical cabinet
Zoned wiring and centrally arranged control components make maintenance and troubleshooting straightforward.
- Stable control
- Easy maintenance
PLC control
Process parameters are set from one screen for easy commissioning, product changeover and status monitoring.
- Intuitive operation
- Fast setup
Three-station rotary table
Injection, blowing and stripping stations follow one another continuously, holding indexing accuracy and a steady cycle.
- Accurate indexing
- Continuous production
Clamping system
Fast, smooth clamping keeps the mold evenly loaded and the bottles consistent.
- Stable clamping
- Even force
Injection screw
The screw and injection unit balance plasticizing efficiency with shot-to-shot repeatability.
- Efficient plasticizing
- Stable injection
Stainless-steel hopper
Feeds resin steadily and is easy to clean during material or colour changes.
- Steady feeding
- Easy cleaning
Energy test
All-electric vs hydraulic: MSZ70AE against MSZ70
A 150 ml HDPE round bottle on a 9-cavity mold. The all-electric MSZ70AE runs a shorter cycle and uses markedly less energy for every 100,000 bottles.
| Model | MSZ70 | MSZ70AE |
|---|---|---|
| Cavities | 9 | 9 |
| Bottle weight | 21 g | 21 g |
| Cycle time | 16.4 s | 14 s |
| Output | 1,975 pcs/h | 2,314 pcs/h |
| Energy per 100,000 bottles | 978 kWh | 705.6 kWh |
| Time per 100,000 bottles | 50.6 h | 43.2 h |
Source: Victor Machinery test data, 2026 product catalogue. Results depend on bottle design, resin and mold.
27.9%
less energy per 100,000 bottles
14.6%
less production time
Applications
Product Application
Chew gum bottles
Milk& juice bottles

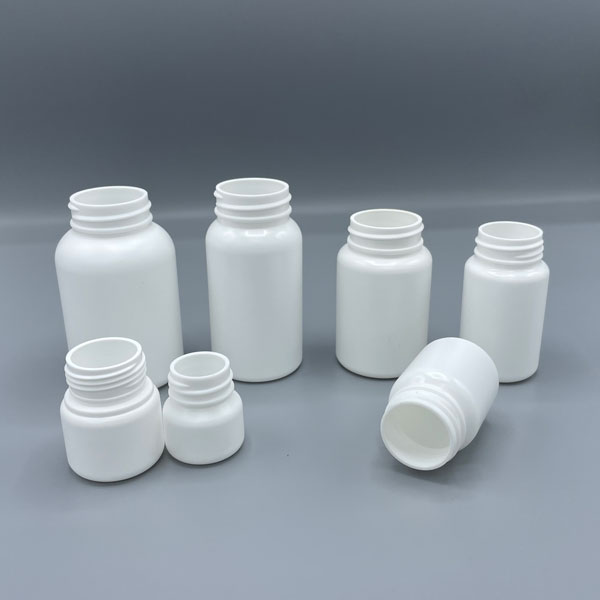

Pharmaceutical tablet containers
Food packaging
Applications
What the MSZ70AE makes
Bottle solutions where Victor engineers specify the MSZ70AE. Each page lists material, volume, cavities and the mold concept.
Also suitable for
Engineering
Advantage
Clamping parts
Special designed single crossbar dual-cylinder balance clamping system,for fast opening and closing mold while ensuring uniform distribution.
Rotation mechanism
Unique rotating mechanism design, and equipped with automatic lubrication system,ensure rotation precision be consistent.
Injection components
Alternative efficient plasticizing mixing screw, optimization of the injection unt,improve the injection stability and accuracy.
Hydraulic system
Equipped with electro-hydraulic servo system, the machine is running stable, low noise, high response and energy saving of 25% to 45%.
Barrel screw
Screw optimization design, clamp screw head assembly, with good plasticizing ability, wear resistance.
Processing principle
The MSZ70AE all-electric IBM machine is designed for high-speed and clean injection-blow molding of pharmaceutical, cosmetic, and personal care bottles. Its servo-driven system provides precise control over plasticizing, injection, blowing, and ejection—ensuring smoother operation, reduced energy consumption, and greater production stability compared to traditional hydraulic machines.

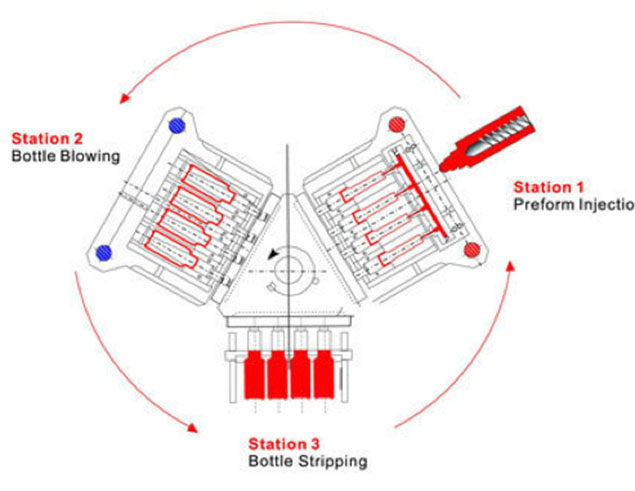

With a high-accuracy three-station rotary table, the preform is injected, transferred to the blowing station for bottle forming, and then moved to the stripping station for clean discharge. This streamlined process delivers excellent neck finish, uniform wall thickness, and highly consistent bottle dimensions.
Engineered for demanding environments such as medical and cosmetic packaging, the MSZ70AE offers superior repeatability, low noise, and cleanroom compatibility while supporting a wide range of materials including PE, PP, PS, PETG, COC, and more.
Parameter Table
Values as published by the manufacturer. Final configuration is confirmed by a Victor engineer against your bottle drawing and acceptance conditions.
Swipe the table sideways to see all specifications →
| Parameter | Unit | MSZ70AE | MSZ70AE |
|---|---|---|---|
| Screw diameter | mm | 50 | 55 (standard) |
| Screw L/D | L/D | 23:1 | 23:1 |
| Shot volume | cm³ | 392 | 475 |
| Injection weight (HDPE) | g | 372 | 450 |
| Max. screw speed | rpm | 10–235 | |
| Heating capacity | kW | 14 | |
| No. of heating zones | Qty | 3+N | |
| Clamping force (preform) | kN | 712 | |
| Clamping force (blowing) | kN | 107.7 | |
| Opening stroke of mold platen | mm | 165 | |
| Lifting height of rotary table | mm | 80 | |
| Max. platen size (L×W) | mm | 800×390 | |
| Min. mold thickness (H) | mm | 280 | |
| Heating capacity of mold | kW | 6 | |
| Stripping stroke | mm | 295 | |
| Dry cycle | sec | 2.7 | |
| Motor power | kW | 9.8 | |
| Hydraulic pressure | MPa | — | |
| Suitable bottle volume | ml | 5–2000 | |
| Max. bottle height | mm | ≤200 | |
| Max. bottle diameter | mm | ≤100 | |
| Compressed air pressure | MPa | 1 | |
| Compressed air discharge | m³/min | ≥0.8 | |
| Cooling water flow | m³/h | 5 | |
| Total rated power (with mold heating) | kW | 96.55 | |
| Dimension (L×W×H) | m | 5.10×2.00×2.60 | |
| Net weight | ton | 10 | |
FAQ
MSZ70AE questions, answered from the spec sheet
Figures come from the Victor technical parameter table for this model. For a cavity count and hourly output on your bottle, send a drawing or sample.
Ask about the MSZ70AEWhat bottle sizes can the MSZ70AE make?
The MSZ70AE is designed for bottles of 5–2000 ml, up to 200 mm tall and 100 mm in diameter. Typical products made on it include syrup bottles.
What is the clamping force of the MSZ70AE?
The MSZ70AE has 712 kN clamping force at the injection (preform) station and 107.7 kN at the blow station.
How fast is the MSZ70AE?
The dry cycle of the MSZ70AE is 2.7 seconds. Real output depends on the bottle, the material and the number of cavities in the mold. In Victor's test with a 100 ml HDPE tablet container, the MSZ70AE runs 9 cavities per cycle.
Which screw sizes are available for the MSZ70AE?
The MSZ70AE is available with a 50 mm screw as standard or a 55 mm screw. Maximum injection weight is 372 / 450 g of HDPE (392 / 475 cm³).
How much floor space and power does the MSZ70AE need?
The MSZ70AE measures 5.10×2.00×2.60 m (L × W × H), weighs about 10 t and has a total rated power of 96.55 kW including mold heating. It needs compressed air at 1 MPa.
